2026 Honda Pilot TrailSport
Engineered for the Dirt
For years, the "off-road" trim on many three-row SUVs amounted to little more than black wheels and rugged-looking badges. The 2026 Honda Pilot TrailSport breaks that mold. It is the most capable Honda SUV ever built, featuring substantial mechanical upgrades engineered specifically for the rough terrain found on Texas ranches and unpaved county roads.
This technical analysis isolates the specific hardware changes that differentiate the TrailSport from the standard Pilot lineup.
Suspension Geometry and Contact Patch
The foundation of the TrailSport capability is its suspension tuning. Honda engineers modified the spring rates and damper valving to create a 1.0-inch suspension lift.
This lift serves two purposes. First, it increases ground clearance to 8.3 inches, allowing the vehicle to clear taller obstacles like mesquite stumps or rocks. Second, it increases suspension travel, which helps keep the wheels in contact with the ground on uneven surfaces.
Attached to this suspension are 18-inch wheels wrapped in General Grabber™ A/T Sport tires. Unlike standard all-season tires, these all-terrain tires feature a deeper tread block design. This allows the tire to mechanically interlock with loose dirt, sand, and gravel to generate traction where a street tire would simply spin.
Underbody Armor and Protection
Driving off-road in Burleson or heading to Hidden Falls requires protection for vital components. The 2026 TrailSport comes equipped with robust steel skid plates.
- Front Skid Plate: Protects the oil pan and transmission from impact damage.
- Fuel Tank Skid Plate: Shields the fuel tank from punctures when cresting sharp ridges.
These are not plastic cosmetic covers; they are thick steel plates capable of supporting the weight of the vehicle during a "slide over" impact.
Off-Road Specification Breakdown
| Feature | Standard Pilot (AWD) | Pilot TrailSport | The Engineering Benefit |
|---|---|---|---|
| Ground Clearance | 7.3 inches | 8.3 inches | Clears taller obstacles without underbody contact. |
| Approach Angle | 19.6 degrees | 19.8 degrees | Steep hills can be climbed without scraping the front bumper. |
| Departure Angle | 19.0 degrees | 19.0 degrees | Allows for safe exit from steep declines. |
| Tires | All-Season Street | All-Terrain (A/T) | A/T tires resist sidewall punctures and grip loose soil. |
| Recovery Points | Screw-in Eyelet | Integrated Hitch | Rated recovery point for snatch straps or winching. |
The "Trail" Logic of i-VTM4®
The mechanical hardware is controlled by the Intelligent Variable Torque Management™ (i-VTM4®) system. While available on other trims, the TrailSport receives exclusive software logic known as "Trail Torque Logic."
In a standard AWD system, if a wheel lifts into the air, the differential often sends power to that spinning wheel, wasting energy. The TrailSport detects when a wheel loses contact with the ground. It immediately halts power to the airborne wheel and diverts 75% of available torque to the wheel on the ground with traction. This acts like a locking rear differential, pushing the vehicle forward even when it is balancing on three (or two) wheels.

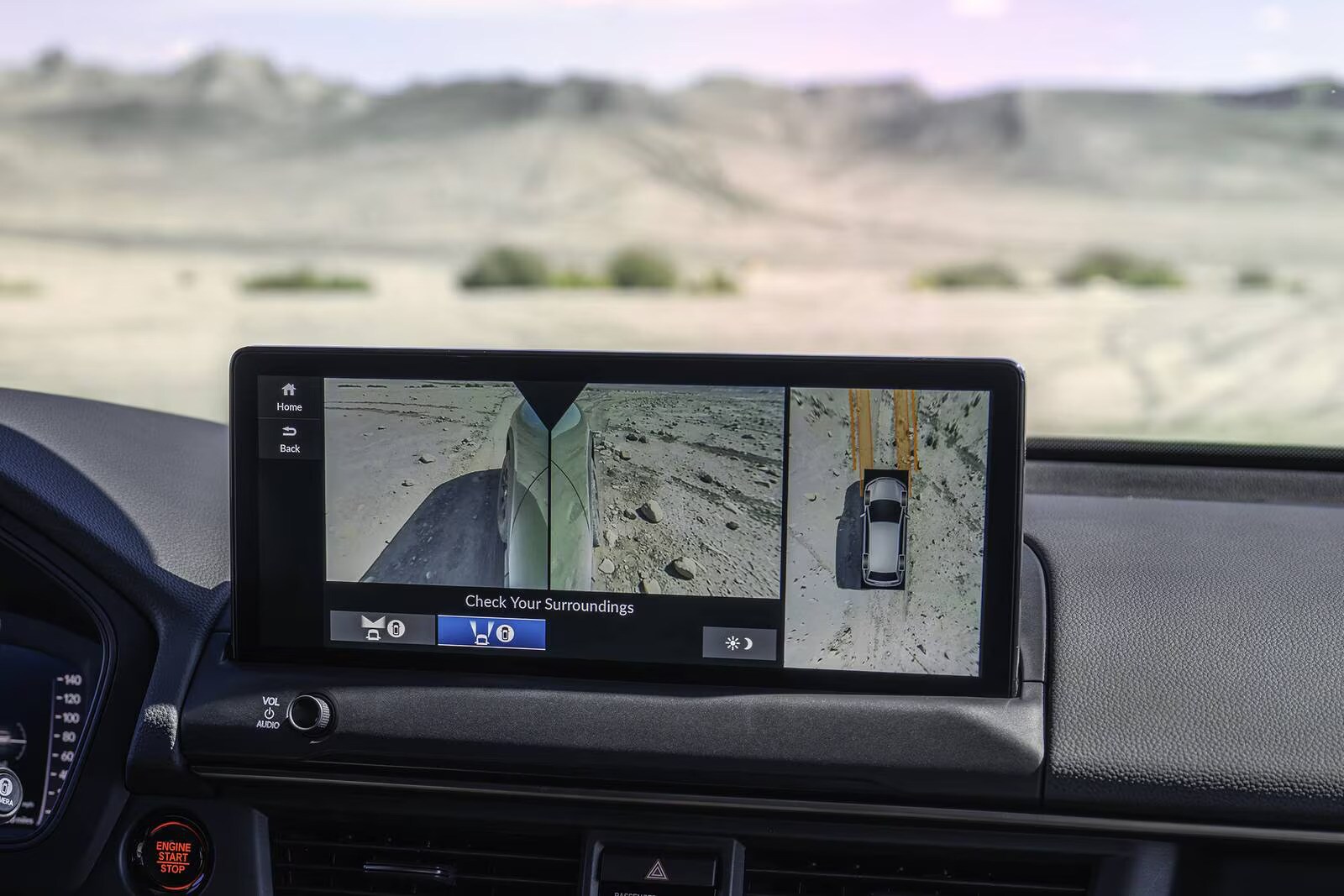

TrailWatch™ Camera System
Visibility is critical when cresting a hill where the windshield only shows the sky. The TrailSport features the TrailWatch™ camera system.
This system utilizes four exterior cameras to generate a live feed of the terrain surrounding the vehicle. The most critical view is the "front tire" view. It displays the exact path of your front wheels on the 9-inch center touchscreen, allowing you to steer precisely between jagged rocks or ruts without needing a spotter outside the vehicle.
The Verdict for Burleson Adventures
The 2026 Honda Pilot TrailSport is a legitimate tool for outdoor enthusiasts. It combines the family utility of an 8-passenger SUV with the mechanical grit required for real-world exploration. Whether you are navigating a muddy boat ramp or crossing a washed-out ranch road, the TrailSport is engineered to get you there and back.
